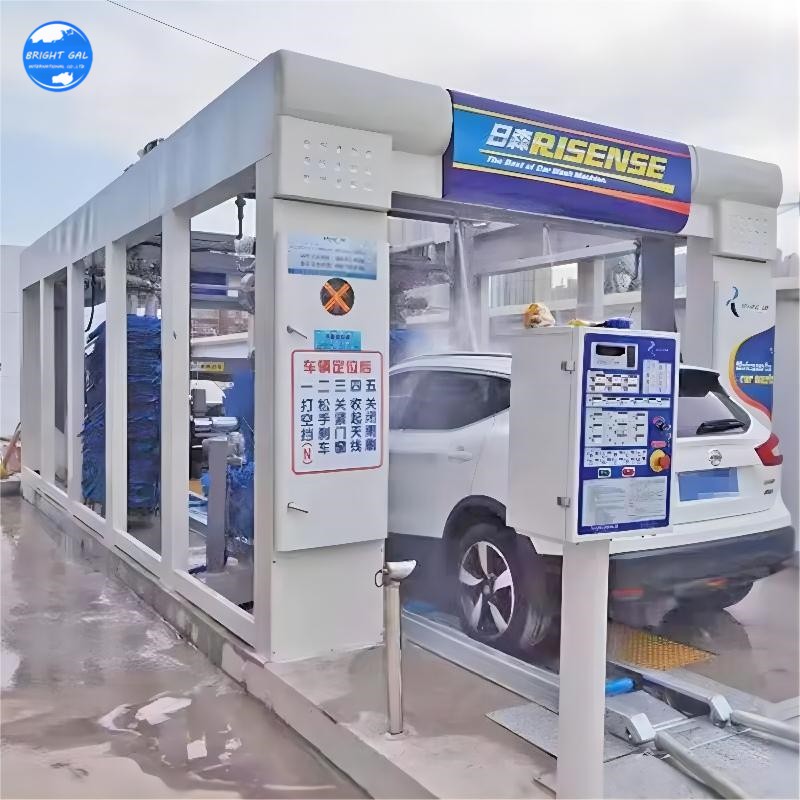

Automatic Tunnel Car wash machine High pressure 14 Brushes with Fully dry system
Product name : Automatic Tunnel Car wash machine High pressure 14 Brushes with Fully dry system
Model No. : XCJ24040705-M
Price : 54500$/set-62000$/set
Products Category: > Car washing machine
Automatic Tunnel Car wash machine High pressure 14 Brushes with Fully dry system
Place of Origin | Shandong, China |
Output Power | 1000-1500W |
Brand Name | Risense |
Model Number | CC-695 |
Size | 19800x3800x3440mm |
Material | Hot-dip galvanized frame |
Warranty | 1 Year |
Design Style | New China-Chic |
Assembling range | 22000x3800mm |
Available size for car | 5200x2150x2200mm |
Available car to wash | Car/jeep/coach Within 10seats |
Washing time | 1:12 Minutes / Car |
Car wash capacity | 45-50 Car per hour |
Mains voltage | 3PHASE AC380V /50HZ |
Water supply | DN25mm/Waterflow rate≥200L/min |
Air pressure | 0.75-0.9Mpa/Airflow rate≥0.6m³/min |
Water/electricity consumption | 180L/Car, 0.6kw/Car |
Shampoo consumption | 10ml/Car |
Features:
1.Continuous Washing: With the control of PLC , the second car enters the tunnel with the guidance of the electroplated conveyor device system when the first car moves on to be dried.
2.IP56 waterproof, dustproof and shakeproof motor and reducer is an Italy brand. It is very durable and energy saving.
3.The brushes are gentle enough to protect the paint. It can completely wash the car with the use of automoible detergent. The brushes will rotate automatically to shake off the water and impurities at the end of washing.
4.The air drying system is with 4 drying motors blowing air from above and both sides of the car , makes a very good drying effect with the use of hydrophobic wax.
5.Pepperl+Fuchs Proximity Switch is used for controlling the movement of the brushes so as to protect both the machine and vehicles.
6.The Japanese MitrubishiPLC control system is used for controlling the washing procedures precisely with the use of Banner photosensors from USA.
7.The voice prompt and traffic signal on the screen remind the driver to operate properly so as to ensure car washing safety.
8.This tunnel car wash machine uses air drying system. There are 4 drying motors in total, one on each side and 2 on the top.The side dryers blow directly and the top dryers move up and down to dry the car while it is moving forward.
9.The electroplated conveyor device system at the entrance ensures that the car goes into the tunnel safely without any damage to the tire.
Company profile
Hong Kong Bright Gal International Co., Ltd., as a branch of Dezhou Yisen New Energy Auto Co., Ltd., relies on the strong support of factories in mainland China and is committed to providing customers with products with leading technology, superb technology and stable quality. From golf carts and sightseeing buses to classic cars and patrol cars, to car charging piles, auto accessories and intelligent mechanical products, the company has demonstrated its diverse production capabilities. In addition, the company also has second-hand car export qualifications and can export second-hand electric cars, actively responding to the call of green, low-carbon, environmental protection and energy conservation.
Dezhou Yisen New Energy Auto Co., Ltd. has a wide range of investments in mainland China, including Tianjin Jindi Intelligent Technology Co., Ltd., Shengjia Intelligent Manufacturing Co., Ltd., Shandong Diangu Intelligent Manufacturing Co., Ltd. and Qingdao Auto Parts Company, etc. These factories not only provide a solid production foundation for the Hong Kong branch, but also ensure the high quality and stability of the products.
The company also performs well in terms of after-sales service. With the support of its factories in mainland China, the Hong Kong branch is able to provide customers with good after-sales services, ensuring that customers receive timely and professional support during use.
At the same time, the company has always been committed to creating high-quality Hong Kong service standards, with customer satisfaction as its primary goal. In the context of the new era of green, low-carbon, environmental protection and energy conservation, the company is actively advocating the concept of low-carbon travel, starting from itself, and contributing to the human living environment.
In general, Hong Kong Bright Gal International Co.,Ltd has demonstrated strong production capabilities and high-quality service levels with the support of factories in mainland China. The company has performed well in terms of product variety, quality and after-sales service. In the future, the company will continue to adhere to the concepts of green, low-carbon, environmental protection and energy saving, and provide customers with better products and services.
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
