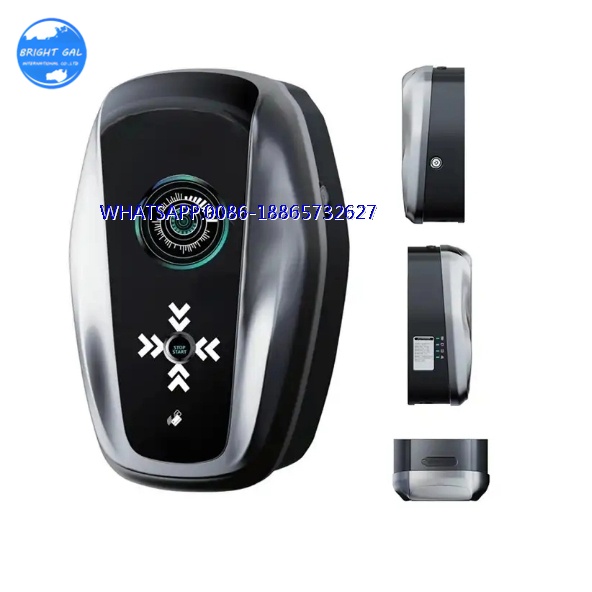

Electric Vehicle Charging Station AC 32A 7kw GB/T Wallbox EV Charger Pile
Product name : Electric Vehicle Charging Station AC 32A 7kw GB/T Wallbox EV Charger Pile
Model No. : CDZ24040801-M
Price : 240$/set-460$/set
Products Category: > EVs charger station
![Send Inquiry](/images/send_inquiry_en.gif)
Electric Vehicle Charging Station AC 32A 7kw GB/T Wallbox EV Charger Pile
Product Model | AC07032 | ||

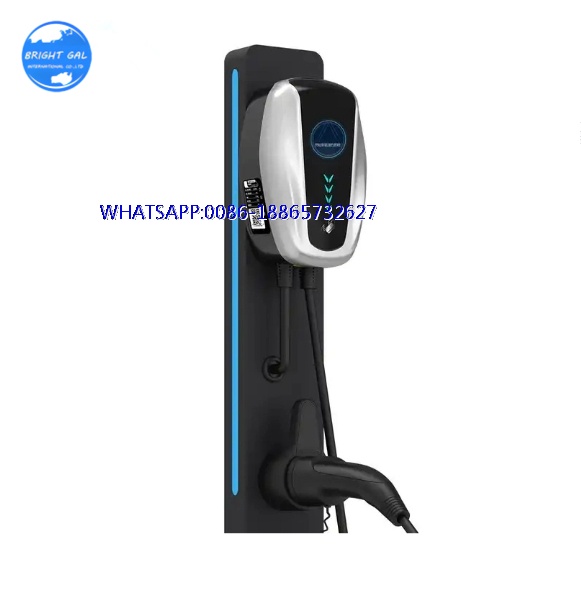

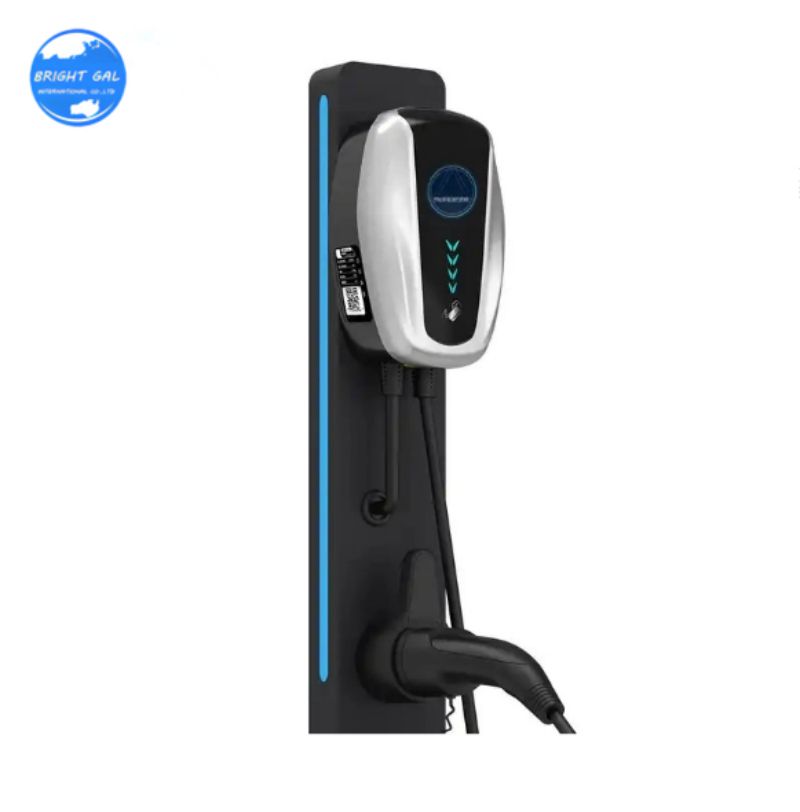

Wall mounting | Pedestal mouting | ||
Charging | Rated Power | 7KW | |
User Interface | Display screen,LED indicator | ||
Cable Routing | Bottom inlet wiring, Bottom outlet wiring | ||

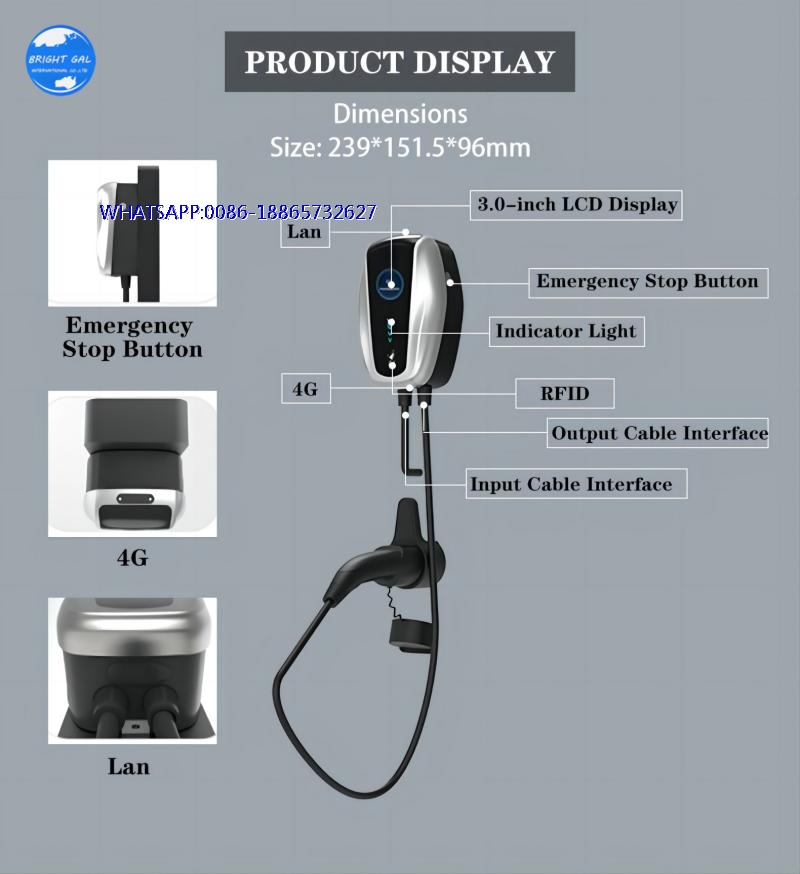

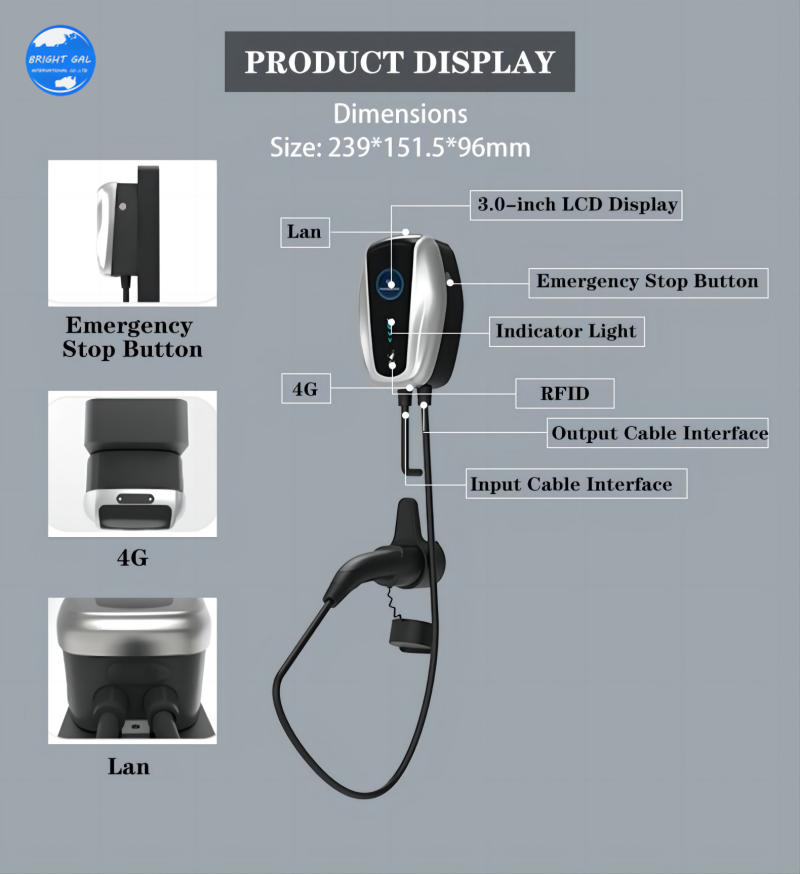

Dimension | 230.0*151.5*96.0mm | ||
Input voltage | 100-240Vac | ||
Input frequency | 50/60Hz | ||
Output voltage | 100-240Vac | ||
Output current | 0-32A | ||
Charging Wire length | 3/5/8/10m | ||
Protection Design | Overcurrent protection value | ≥110% | |
Overvoltage protection value | 265Vac | ||
Undervoltage protection value | 175Vac | ||
Over-temperature protection value | 80℃ | ||
Electric leakage protection value | 30mA,A/B (optional) | ||
Standard | EN61851-1-2012 IEC62196-2-2011 | ||
Function Design | Charging model | Automatic chargeing,charging by electricity,charging by time | |

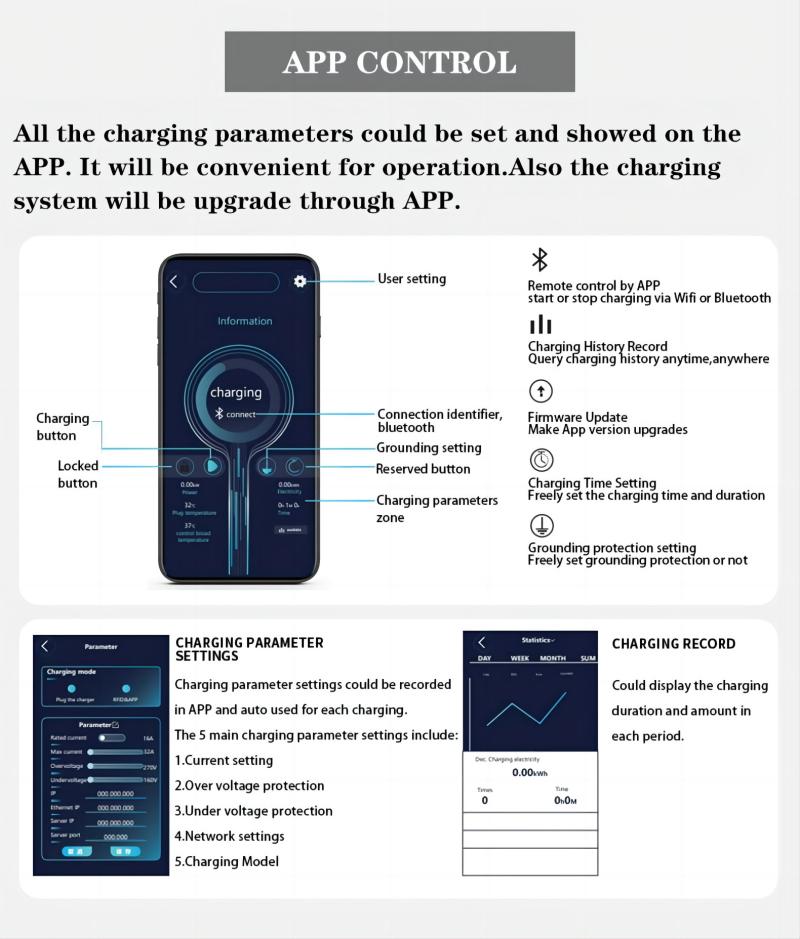

Payment | swiping card/scan code/Application(optional) | ||
Communication Interface | 4G/Ethernet/WIFI(optional) | ||
Environmental Indicators | Work temperature | -25 ℃-50 ℃ | |
Work humidity | -5%~95% non-condensation | ||
Work altitude | <2000m | ||
Protection Level | IP54 | ||
Cooling Model | natural cooling | ||
MTBF | 50,000 hours |
Product Overview
*This product is a 7KW single-phase AC charging pile, mainly used for AC charging of electric vehicles. The product is composed of charging pile body, wall-hanging backboard, floor-to-ground column (optional), etc., with charging protection, charging by swiping card, charging by scanning code, mobile payment, network monitoring and other functions. This product adopts industrial design principle, easy to install and easy to use.

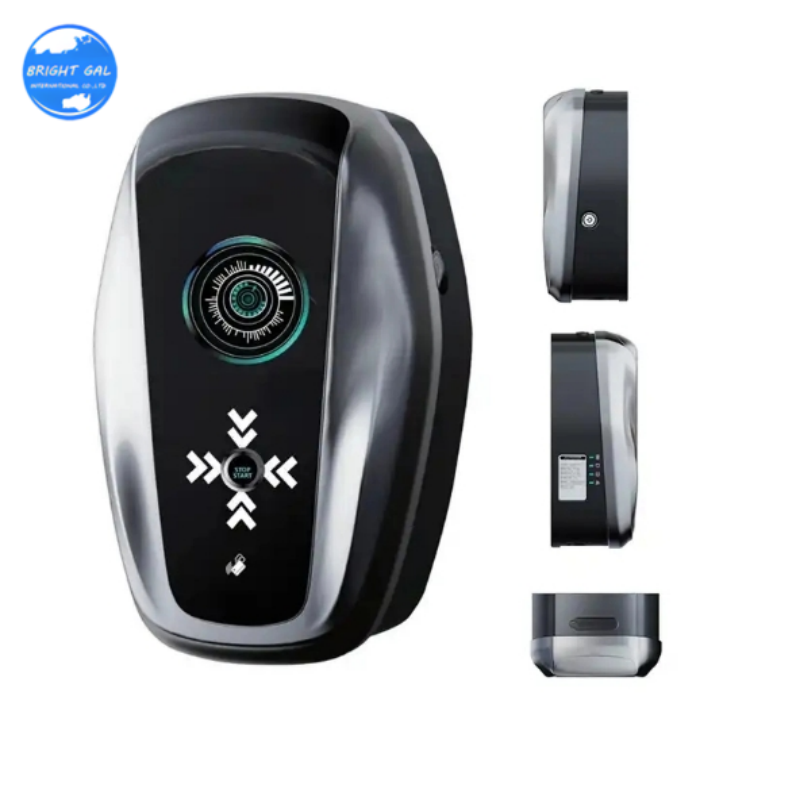

*Exterior: Exquisite and light, a variety of color options, suitable for different application scenarios.
*Protection: level of protection IP54 (waterproof and dustproof), can withstand wind, rain and sun exposure.

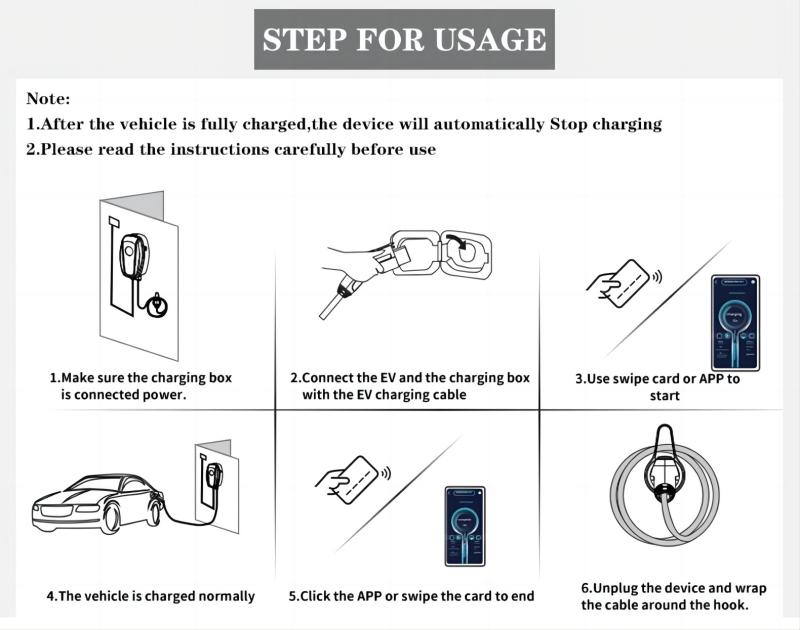

*Operation: The head of the charger is designed to open the cover with one bottom. The operation is simple and convenient, namely plug and play.
*Safety: multiple protection, safety upgrade, high quality materials, fireproof, waterproof and dustproof.
*Commonality:Small body, big energy, compatible with 99% of the new energy vehicles.
*Quality:Pure copper wire without oxidation,comply with inspection standard,flame retardant impact resistance.

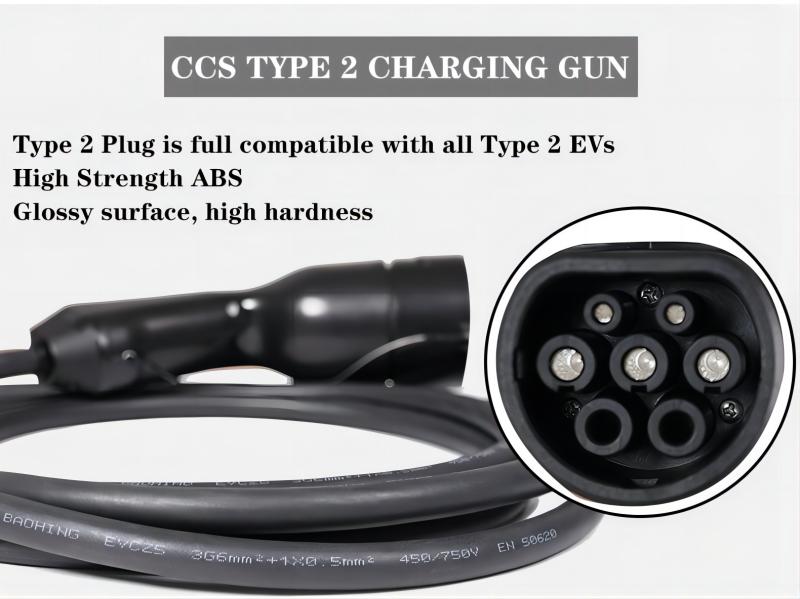

*The performance of the charger meets the requirements<<IEC 62196-2-2011 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles Part 2>>relevant regulation.
*According to <<IEC 61851-1-2012 Electric Vehicle Conductive Charging System Part 1>>relevant regulation, and with reference to the "Electric Vehicle Charging Facilities Typical Design" part of the function of the design.The products fully meet the national and industrial standards for electric vehicles.

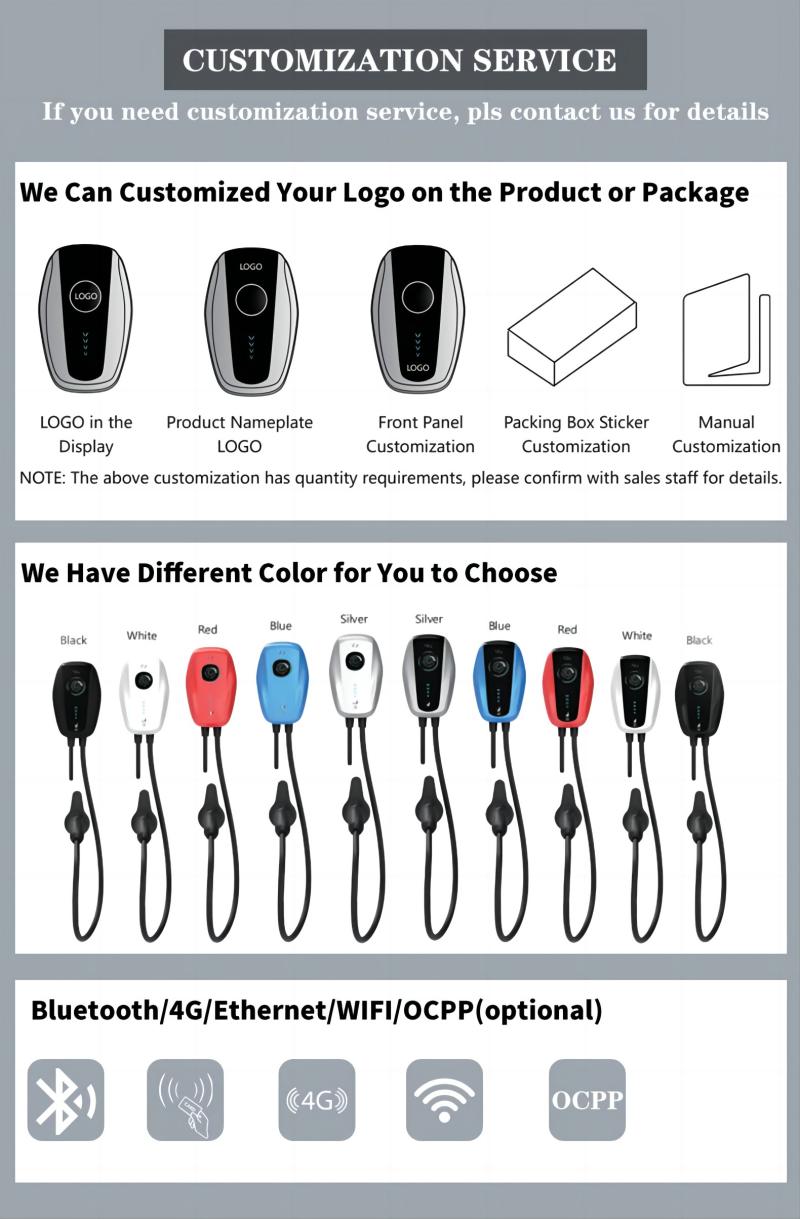

Our charging piles support customization
Standard export packaging display
Company profile
Hong Kong Bright Gal International Co., Ltd., as a branch of Dezhou Yisen New Energy Auto Co., Ltd., relies on the strong support of factories in mainland China and is committed to providing customers with products with leading technology, superb technology and stable quality. From golf carts and sightseeing buses to classic cars and patrol cars, to car charging piles, auto accessories and intelligent mechanical products, the company has demonstrated its diverse production capabilities. In addition, the company also has second-hand car export qualifications and can export second-hand electric cars, actively responding to the call of green, low-carbon, environmental protection and energy conservation.
Dezhou Yisen New Energy Auto Co., Ltd. has a wide range of investments in mainland China, including Tianjin Jindi Intelligent Technology Co., Ltd., Shengjia Intelligent Manufacturing Co., Ltd., Shandong Diangu Intelligent Manufacturing Co., Ltd. and Qingdao Auto Parts Company, etc. These factories not only provide a solid production foundation for the Hong Kong branch, but also ensure the high quality and stability of the products.
The company also performs well in terms of after-sales service. With the support of its factories in mainland China, the Hong Kong branch is able to provide customers with good after-sales services, ensuring that customers receive timely and professional support during use.
At the same time, the company has always been committed to creating high-quality Hong Kong service standards, with customer satisfaction as its primary goal. In the context of the new era of green, low-carbon, environmental protection and energy conservation, the company is actively advocating the concept of low-carbon travel, starting from itself, and contributing to the human living environment.
In general, Hong Kong Bright Gal International Co.,Ltd has demonstrated strong production capabilities and high-quality service levels with the support of factories in mainland China. The company has performed well in terms of product variety, quality and after-sales service. In the future, the company will continue to adhere to the concepts of green, low-carbon, environmental protection and energy saving, and provide customers with better products and services.
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
